Washington State Energy Code for Insulation

🏡 1. Code Overview & Climate Context

• Washington State mandates adherence to the 2021 WSEC (Residential - WAC 51‑11R‑2021) for homes submitted after July 1, 2023; code enforcement has strengthened since March 15, 2024
• The state falls into Climate Zones 5 and Marine 4, requiring robust insulation and airtight construction—ceiling air leakage must be ≤ 5 ACH50

2. Ceiling & Attic Insulation Requirements

Prescriptive R‑Values (Table R402.1.2):

• Ceilings/Attics: Required R‑60, equivalent to U‑0.024
• Exception: Installing full coverage of R‑49 loose-fill or batts—uncompressed and extending over wall plates—satisfies the R‑60 requirement
• Vaulted Ceilings: Can reduce to R‑38 if insulation runs continuously to the exterior wall line.

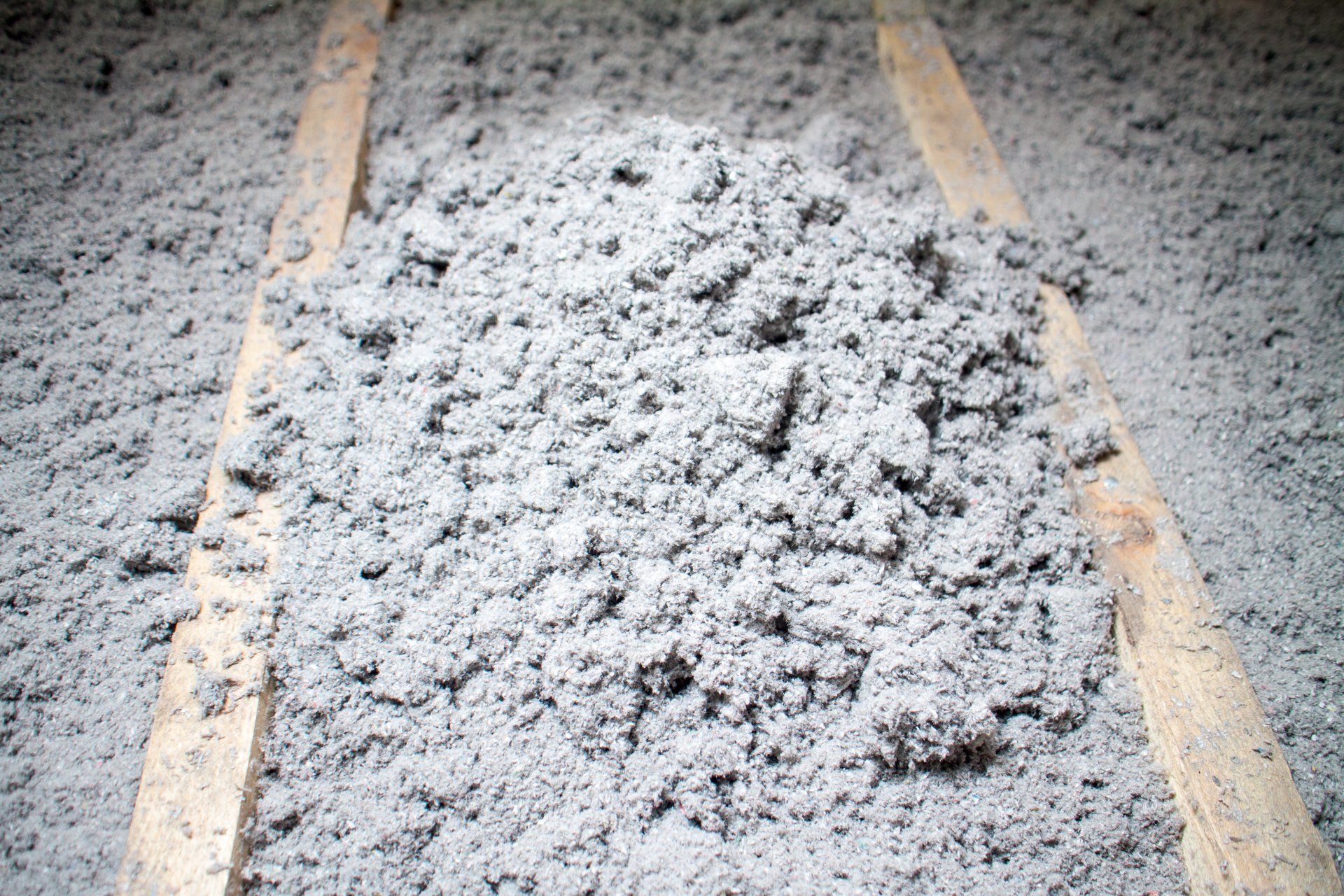

• Loose-fill Rules: Allowed on slopes ≤ 3:12, with ≥ 30″ attic clearance
• Ventilation baffles are mandatory at soffits/eaves to prevent insulation from blocking airflow
• Access hatches must match ceiling R‑value, be weather‑stripped, structurally supported, and insulated to maintain thermal seal

3. Wall Insulation Standards

• Wood‑frame walls have two prescriptive options to meet U‑0.056:
• R‑20 cavity + R‑5 continuous insulated sheathing, or
• R‑13 cavity + R‑10 continuous insulation

Requirements ensure both cavity and continuous components combine to meet wall thermal performance.

4. Basement & Below‑Grade Insulation

Adheres to 10/15/21 + 5 TB rules:

• Acceptable methods include:

1. R‑10   continuous exterior insulation,
2. R‑15   continuous interior insulation,
3. R‑21   cavity with thermal break, or
4. R‑13 cavity + R‑5 ci + R‑5 slab break

• Interior installations require an R‑5 rigid board thermal break between wall and slab

5. Slab‑on‑Grade Floors

• Unheated or heated slabs must have R‑10 insulation extending 4 feet from the slab edge, with F‑factor compliance (0.54)

6. Floors over Unconditioned Spaces

• Floor cavity insulation must maintain contact with subfloor or sheathing.
• Use supports ≤ 24″ on center; foundation vents must allow proper airflow, or include baffling if vents are above insulation

7. Additional Code Elements

• Air leakage: Mandatory ≤ 5 ACH50 for whole building tightness
• Recessed lighting in ceilings must be IC‑rated or enclosed in a sealed box
• Insulation facings must have flame spread < 25 and smoke density < 450, unless covered properly.
• Insulation inspection is required after all cavity insulation is in place and before concealment

8. Compliance & Inspection

• Builders must schedule wall insulation inspections before walls are closed
• Final inspections confirm performance testing compliance for air-tightness, thermal continuity, and proper installation.
• Local jurisdictions (e.g. Kitsap, King County) enforce these standards rigorously .

✅ Summary Table of WSEC Insulation Requirements

ComponentR‑Value / U‑FactorCeiling/AtticR‑60 (or R‑49 looser-fill per exception)Vaulted CeilingsR‑38 (with requirements met)Wood‑Frame WallsR‑20 + R‑5 CI or R‑13 + R‑10 CIBasement Walls10/15/21 + R‑5 thermal breakSlab‑on‑GradeR‑10 extending 4′; F‑factor 0.54Floors over CrawlspaceFull cavity insulation with supportsRecessed LightingIC‑rated or enclosed & sealedAir Leakage≤ 5 ACH50

🔧 Best Practices for Contractors

1. Plan around current prescriptive paths—ensure R‑values match attic, wall, basement, slab, and floor requirements.
2. Install baffles, hatch-boxes, and venting per spec to maintain insulation and airflow integrity.
3. Document continuous insulation—label thicknesses, materials, and locations for inspection clarity.
4. Seal air barriers early to meet air-tightness and receive smoother final approvals.
5. Schedule inspections before concealment to avoid delays and costly reworks.
6. Stay updated—King County and others may enact local amendments alongside state mandates.

Conclusion

Washington State's current insulation codes, based on the 2021 WSEC and effective mid‑2023/2024, demand high-performance assemblies: R‑60 ceilings, continuous insulation on walls and slabs, and a tight building envelope. For contractors, compliance ensures energy efficiency, comfort, and code approval. For homeowners, it means lower utility bills and higher indoor comfort.
